When it comes to powering large vehicles or off-grid systems, few battery types rival the capacity and reliability of 8D batteries. But with the growing popularity of lithium technology, many users are now questioning whether to stick with traditional AGM lead-acid batteries or upgrade to lithium alternatives. In this guide, we break down the differences between AGM and lithium 8D batteries, compare their performance, and help you decide which is the better fit for your application.
What Is an 8D Deep Cycle Battery?
An 8D battery refers to a specific battery size and classification, commonly used in high-demand applications like RVs, marine vessels, industrial machinery, and solar backup systems. These batteries are known for their large physical size and high amp-hour (Ah) capacity, making them ideal for deep cycle use where consistent power delivery is essential.
Typical dimensions of an 8D battery are approximately 21″ (L) x 11″ (W) x 10″ (H), making it one of the largest 12V batteries available. Its size accommodates more internal components—such as thicker lead plates in AGM versions—enabling greater capacity and higher cold cranking amps (CCA).
Common Applications of Group 8D Batteries
The 8D battery group is designed for energy-intensive environments. Below are common scenarios where they shine:
- Heavy Machinery: Powering construction equipment such as bulldozers, excavators, and cranes.
- Recreational Vehicles (RVs): Supplying reliable off-grid power for appliances, lighting, and HVAC systems.
- Commercial Trucks: Supporting engine starts and auxiliary systems in semi-trucks and delivery vehicles.
- Marine Vessels: Operating navigation, lighting, and auxiliary engines in boats and yachts.
- Off-Grid Power Systems: Ideal for solar energy storage in cabins or remote installations.
- Agricultural Equipment: Powering tractors and other farm vehicles that need high torque and long runtimes.
- Industrial Backup Systems: Providing emergency backup during outages in commercial and manufacturing facilities.
Weight Comparison: Lead-Acid vs Lithium 8D Batteries
Traditional AGM 8D batteries are extremely heavy, often weighing between 120–180 lbs with a capacity of 230–300Ah. In contrast, modern 8D lithium batteries offer a much lighter alternative.

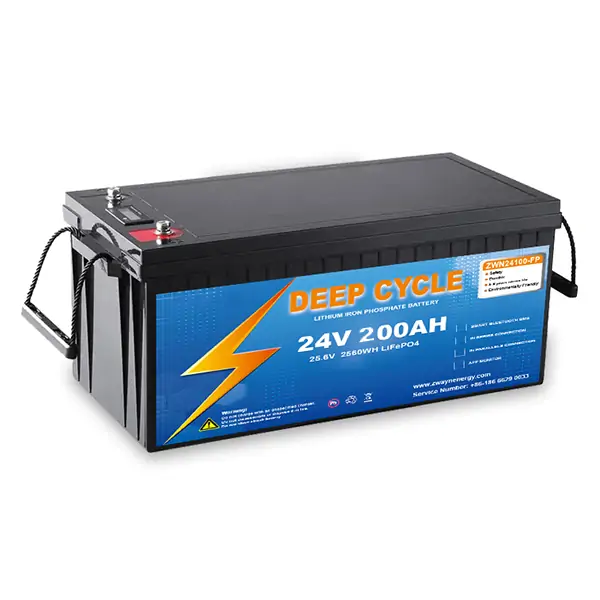

For example, the Evlithium 24V 200Ah LiFePO4 battery weighs only 85.54 lbs but delivers the same usable energy as three AGM batteries combined. This not only reduces the overall weight by hundreds of pounds but also simplifies installation and transport—especially critical in mobile or marine environments.
Advantages of 8D Lithium Batteries Over AGM
Switching from AGM to LiFePO4 lithium batteries offers a range of benefits that extend beyond weight reduction.
1. Higher Usable Capacity
Lithium batteries allow for deeper discharges—up to 80–100% Depth of Discharge (DoD)—without causing damage, while AGM batteries must be kept above 50% to avoid premature failure. This means you can use more energy from the same battery size.
2. Fast Charging
Lithium 8D batteries can charge up to 5x faster than AGM models when paired with an appropriate charge controller. Less downtime means more productivity and quicker turnaround between uses.
3. Longer Lifespan
AGM 8D batteries offer around 200–500 cycles, while lithium alternatives can deliver anywhere from 4,000 to 15,000 cycles, depending on the depth of discharge and usage conditions.
4. Zero Maintenance
Unlike AGM batteries, which require occasional maintenance like electrolyte level checks and ventilation, lithium batteries are completely maintenance-free. That means no hassle—just plug and play.
5. Smart Battery Management System (BMS)
High-quality lithium batteries like Evlithium’s come equipped with a BMS that protects against overvoltage, undervoltage, overheating, overcurrent, and short circuits. This ensures safe and efficient operation across a wide range of applications.
Lithium vs AGM 8D Battery: Side-by-Side Comparison
| Feature | AGM 8D Battery | Lithium 8D Battery (LiFePO4) |
|---|---|---|
| Weight | 120–180 lbs | 85.54 lbs |
| Energy Capacity | Lower | Expandable up to 41kWh |
| Cycle Life | 200–500 | 4,000–15,000 |
| Maintenance | Required | None |
| Charge Speed | Slow | 5x faster |
| Usable Capacity | 50% DoD | Up to 100% DoD |
| Lifespan | ~3 years | Up to 10 years |
| BMS | Basic | Advanced protection features |
Why Choose Lithium for Your 8D Battery Needs?
Choosing lithium 8D batteries for RVs, marine setups, or solar systems brings unmatched efficiency and peace of mind. Consider these added benefits:
- Scalability: Expandable configurations like 2S4P setups can create systems with over 41kWh of storage, ideal for high-power applications.
- Stable Voltage Output: A flat voltage curve ensures consistent performance and prevents power dips.
- Lightweight Power Storage: Lithium batteries provide more energy per pound, freeing up valuable space and reducing wear on your system.
Are 8D Batteries Worth the Investment?
Absolutely—especially if you opt for a lithium 8D battery. While the initial cost of lithium may be higher, the long-term savings in maintenance, replacement cycles, and energy efficiency more than justify the investment. For high-demand, off-grid, or mobile applications, lithium 8D batteries are not only worth it—they’re essential.
FAQs About 8D Deep Cycle Batteries
Q1: What does “8D” mean in batteries?
It refers to the physical size and classification of the battery. Group 8D batteries are among the largest 12V deep cycle batteries available, typically measuring around 21″ x 11″ x 10″.
Q2: What’s the difference between 4D and 8D batteries?
8D batteries are larger, heavier, and provide greater capacity and starting power than 4D batteries, making them better suited for more demanding tasks.
Q3: How long do 8D batteries last?
AGM batteries last 3–5 years or 200–500 cycles. Lithium 8D batteries last up to 10 years or 4,000–15,000 cycles, depending on usage.
Q4: Are 8D batteries deep cycle?
Yes, especially lithium versions like the Evlithium 24V 200Ah LiFePO4, which are designed specifically for deep cycle applications in RVs, boats, and solar systems.
Final Thoughts: Go Lithium for Long-Term Value
The 8D deep cycle battery is a cornerstone for energy-intensive applications, but technology has evolved. If you’re still relying on heavy, high-maintenance AGM batteries, it may be time to upgrade to lithium 8D batteries. With higher efficiency, faster charging, lighter weight, and dramatically longer lifespan, lithium offers a superior solution for anyone serious about power reliability and performance.
